Diabetes Care Products

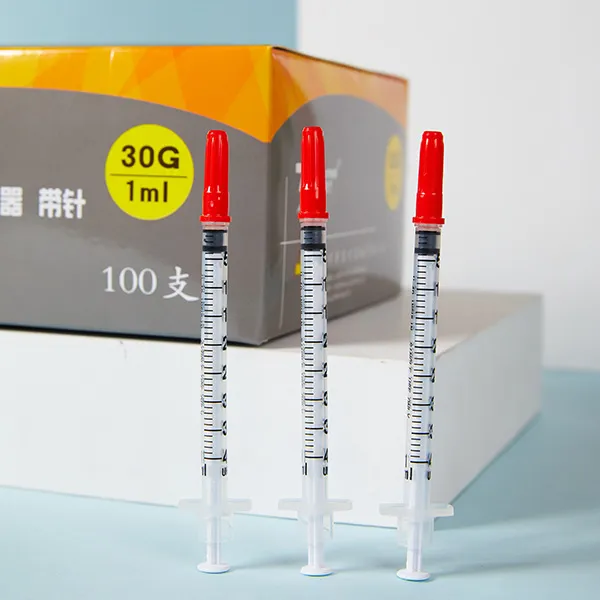

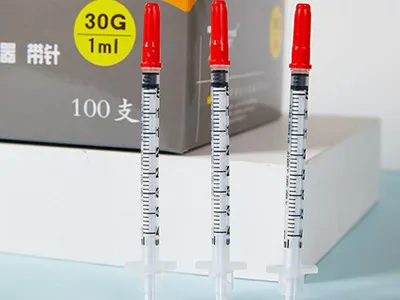

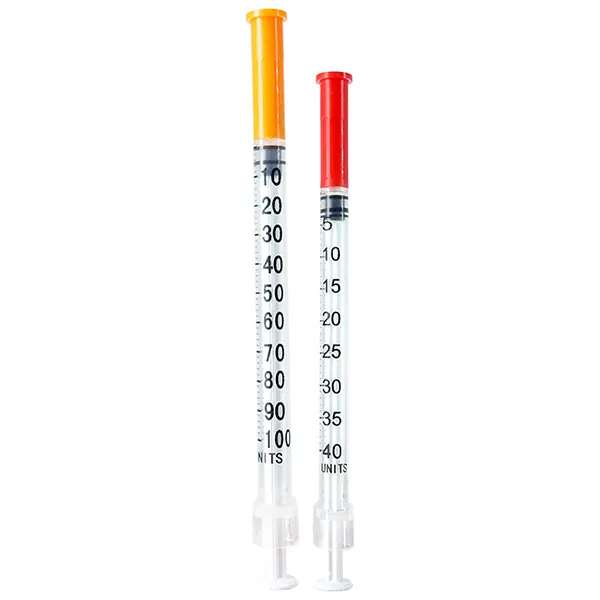

Insulin Syringe

• Approval: EU-MDR and lSO13485
• Sterilization Method: ethylene oxide sterilization, single-use syringe
• Syringe Volume: 0.3ml, 0.5ml, and 1ml

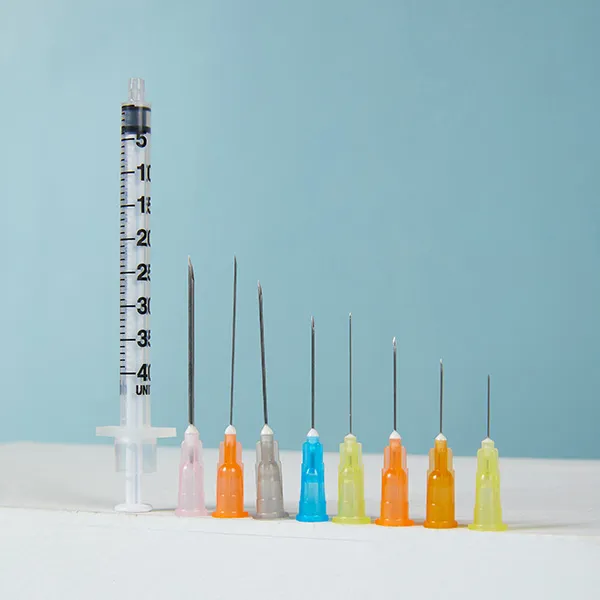

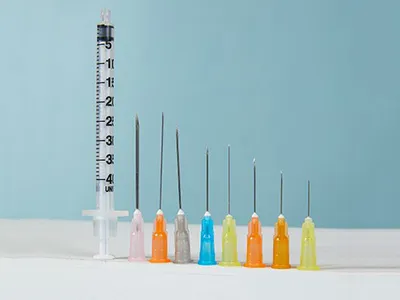

• Needle Gauge: 0.25mm, 0.30mm, 0.33mm, 0.36mm, 0.40mm, and 0.45mm
• Needle Length: 5mm to 19mm
• Wall Type: regular wall (RW) and thin wall (TW)
• Bevel: 11°±2° long bevel (LB) and 17°±2° short bevel (SB)

Registration Number of Approval Certificates

• EU MDR NO.: G10 045084 0043 Rev.00
• EU ISO13485 No.: Q5 045084 0039 Rev.01

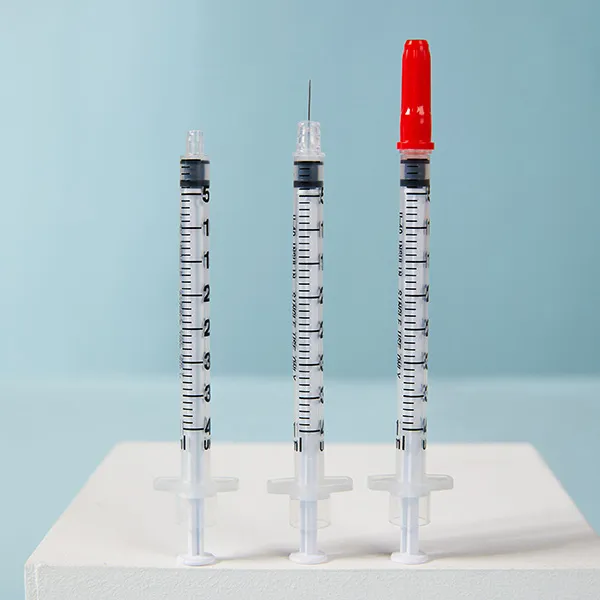

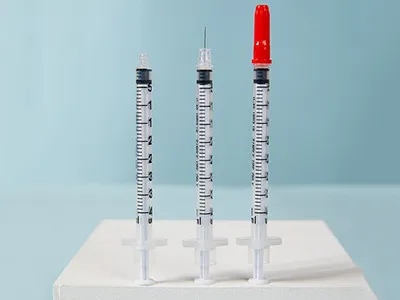

Our concentric tip syringes are available in four types, each tailored for specific uses:

• Type 1: Insulin syringe with a fixed needle, individually packaged. Components include an outer sleeve, plunger, piston, needle cover, and needle.
• Type 2: Insulin syringe with a fixed needle and end cap for extra safety. Components include an outer sleeve, plunger, piston, needle cover, needle, and end cap.
• Type 3: Non-6% (Luer) fitting with a non-removable needle, individually packaged for single use. Components include an outer sleeve, plunger, piston, needle seat, needle cover, and needle.
• Type 4: Non-6% (Luer) fitting with a non-removable needle and end cap for added protection. Components include an outer sleeve, plunger, piston, needle seat, needle cover, needle, and end cap.

We use polydimethylsiloxane as a lubricant and UV glue as an adhesive to ensure smooth and safe operation.

Packaging

Our syringes are available in three levels of packaging to ensure optimal protection and convenience:

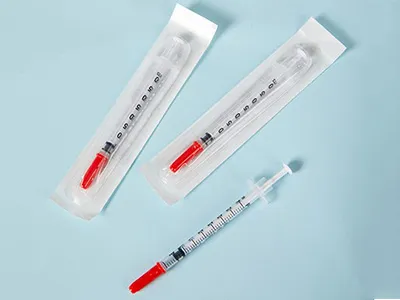

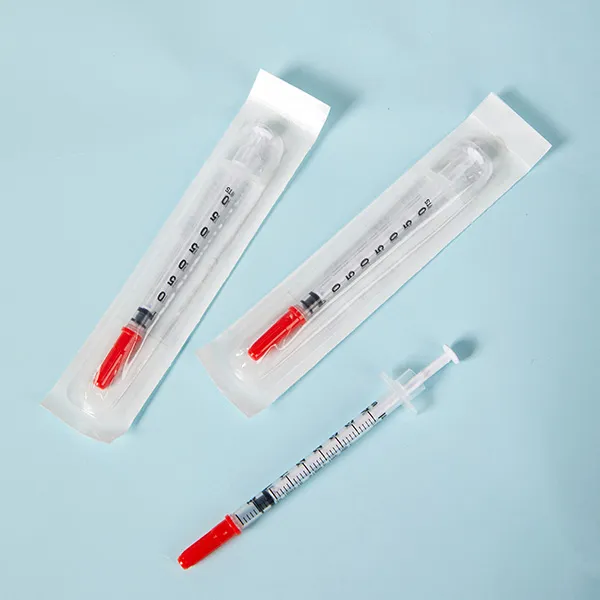

• Individual packaging: Each syringe is individually packaged using dialysis paper and composite film (PET/PE) heat-sealed packs, or high-pressure PE bags, ensuring sterility and product protection.
• Medium packaging: Multiple individually packaged syringes are grouped together in boxes made from grey base whiteboard paper or fine corrugated materials, providing an additional layer of protection.

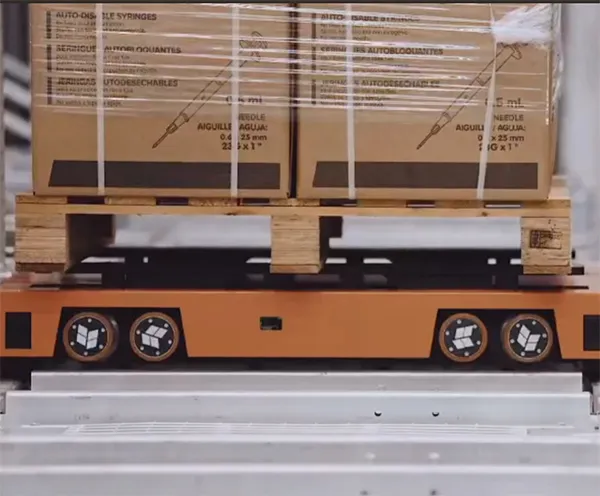

• Bulk packaging: Several medium boxes are then packed into large durable corrugated cardboard boxes, offering robust protection during storage and transport.
