Wound Protector Retractor | Surgical Supplies

Request a Quote

Surgical Meshes

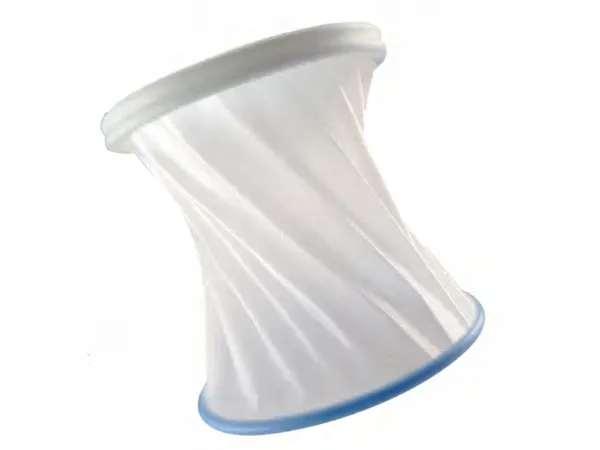

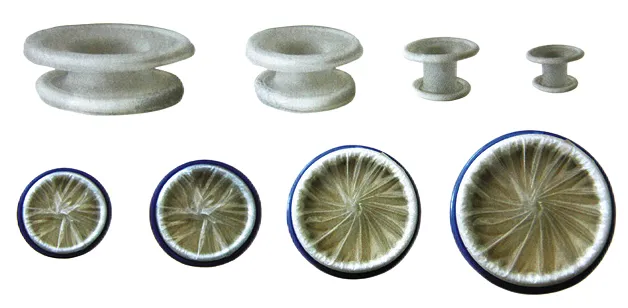

Wound Protector/Retractor

Sterilization: sterile (ethylene oxide sterilization), single-use
Components: external ring, internal ring, open-ended cylinder
Type: fixed height, variable height

Ensuring a clear surgical field and minimizing the risk of infection are crucial in both minor and minimally invasive surgeries. We offer wound protector/retractor designed to expand the surgical site, protect the incision from damage, and significantly reduce the risk of infection. Our wound protectors are known for their superior quality and reliability, providing essential support during delicate procedures.

Specifications

Type	Code	Outside Diameter of External Ring (mm)	Outside Diameter of Internal Ring (mm)	Outside Diameter of Cylinder (mm)	Height (mm)	Deviation (mm)
Fixed Height (D)	YS-40/30-15/25(D)	40	30	15	25	10
	YS-50/40-15/20(D)	50	40	15	20
	YS-50/40-25/25(D)	50	40	25	25
	YS-50/50-25/30(D)	50	50	25	30
	YS-60/50-25/25(D)	60	50	25	25
	YS-60/50-25/50(D)	60	50	25	50
	YS-70/60-35/50(D	70	60	35	50
	YS-70/70-35/25(D	70	70	35	25
	YS-70/70-35/30(D	70	70	35	30
	YS-70/70-35/40(D)	70	70	35	40
	YS-100/50-35/5(D)	100	50	35	5
	YS-120/100-60/25(D）	120	100	60	25
	YS-120/100-60/40(D）	120	100	60	40
	YS-120/100-60/70(D)	120	100	60	70
	YS-120/120-60/25(D)	120	120	60	25
	YS-120/120-60/40(D）	120	120	60	40
	YS-150/70-60/5(D)	150	70	60	5
Variable Height (B)	YS-60/70-60/150(B)	60	70	60	Adjustable 40-150	10
	YS-80/90-80/150(B）	80	90	80	Adjustable 40-150
	YS-120/130-120/250(B)	120	130	120	Adjustable 40-250
	YS-150/160-150/250(B)	150	160	150	Adjustable 40-250
	YS-180/190-180/250(B)	180	190	180	Adjustable 40-250
	YS-220/230-220/250(B)	220	230	220	Adjustable 40-250
	YS-270/280-270/250(B)	270	280	270	Adjustable 40-250
	YS-320/330-320/250(B)	320	330	320	Adjustable 40-250

Notes

The dimensions indicated are nominal sizes. Given that various parts may deform, a dimensional tolerance of ±10mm is allowed. Custom sizes can be made to meet clinical requirements.
The incision length must be slightly smaller than the external diameter of the tube (approximately 10mm) to prevent the protector from moving and affecting the surgery.
