Single Head CT Injector, C10/C20
A high-pressure CT injector is an automated injection system designed to meet all technical requirements of CT contrast enhancement. The maximum contrast injection rate reaches 9.9 ml/s. Multi-phase injection protocols can be programmed, with adjustable intervals between phases. A configurable pressure limit ensures injection safety. The injector system is equipped with input/output interfaces, supports delay time setting, and offers selectable trigger control modes for synchronized operation with CT systems.
Applications
C10/C20 single head CT injector is compatible with various multi-slice CT (MS-CT) systems, including spiral CT, multi-detector CT and multi-row detector CT, for contrast-enhanced examinations.
By using the automatic contrast administration system, more comprehensive diagnostic information can be obtained. For example, in abdominal contrast-enhanced scanning, by selecting appropriate injection rate, dosage and delay time, arterial, venous, and parenchymal phase images of the liver can be obtained from a single contrast injection.
Features
-
Comprehensive and effective safety design:
Precise control of injection rate and injection volume
Configurable pressure limit to ensure injection pressure remains within a safe range
Remote control operation reduces radiation exposure to operators
Injection is enabled only after complete air purging is confirmed
- Easy operation:

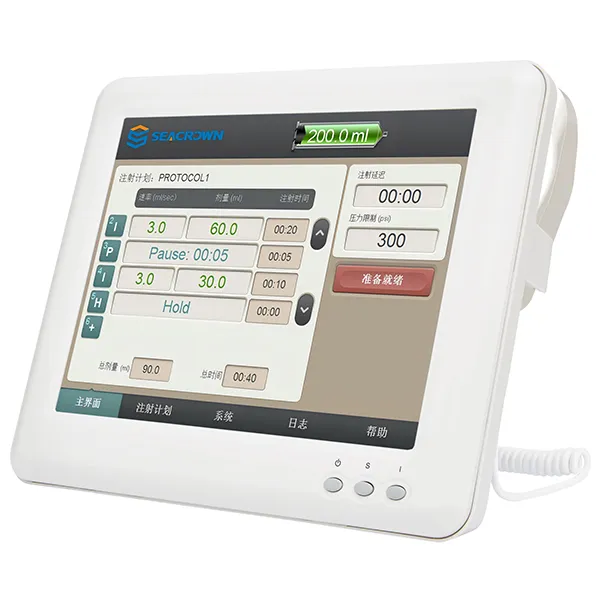

Large full-color display with intuitive graphical user interface
Carefully designed functional keys allow complete operation with minimal buttons
- Human-centered structural design:
Flexible movable stand for optimal positioning in the examination room
Additional accessory tray for extension tubing, contrast media bottles and related components
Technical Specifications
| Model | C10 | C20 |
| Power supply | AC 198-242V, 50/60Hz, 200VA |
| Pressure limit | 50-350psi(345-2415 kPa), step 1psi(1kPa) |
| Injection rate | 0.1-10.0mL/s, step 0.1mL/s |
| Syringe | 100mL disposable syringe | 200mL disposable syringe, or 100mL manual syringe (with syringe conversion bracket) |
| Injection volume | 0.1mL up to full syringe capacity |
