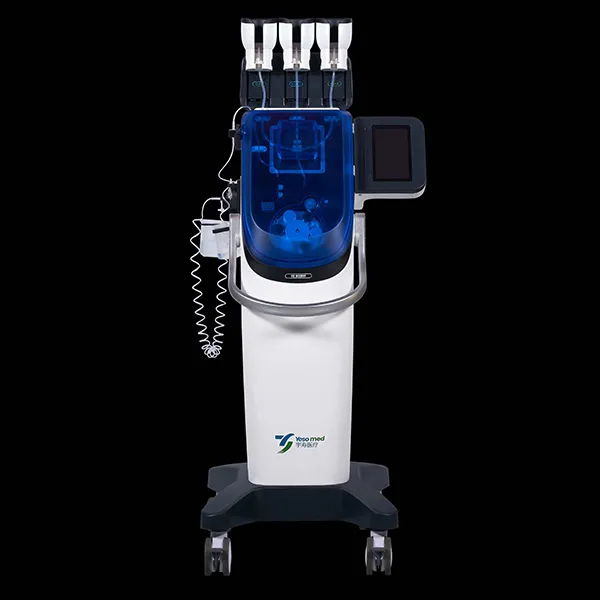

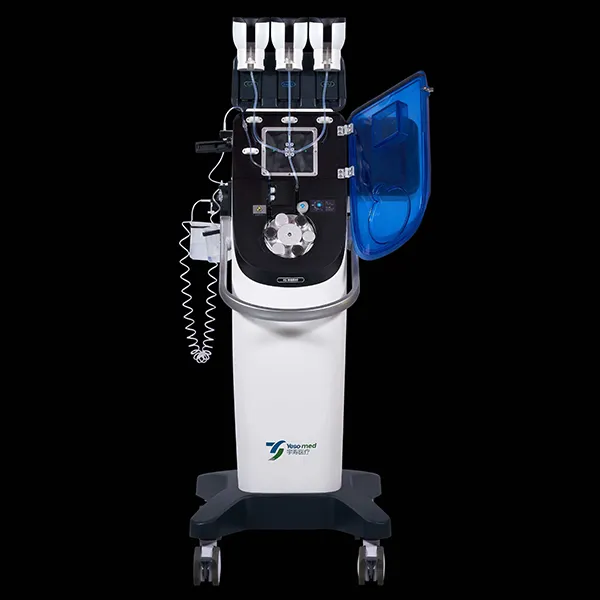

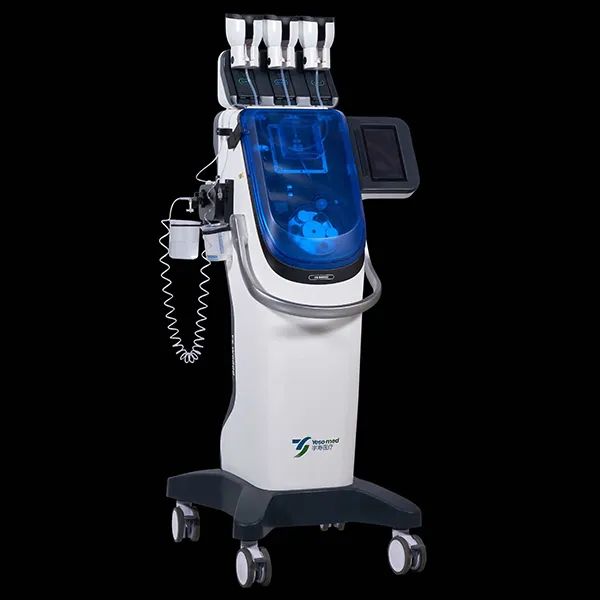

Contrast Media Injector, YSW 6800 CT

Features

The new YS 6800 Series triple-head CT contrast media injection system features a streamlined and user-friendly design.
The globally innovative Alpha Assistant intelligent automation system enables automatic connection of internal and external tubing and optimizes the air purging process, simplifying operation and improving workflow efficiency. Average patient turnover time is reduced by 20%-30% compared with conventional tubing-type high-pressure injectors.
The side-mounted auxiliary display enhances operational safety and helps minimize the risk of liquid splashing. The innovative residual volume display automatically updates the remaining contrast media volume in real time, providing continuous and accurate monitoring.
A magnetic holder combined with a 90-degree rotating vial loading mechanism allows convenient bottle installation and removal, improving handling efficiency.
The proprietary MixFlow mixing algorithm enables tubing-type injectors to perform mixed-flow injection, supporting efficient contrast delivery and enhanced CT angiographic image quality.

Technical Specifications

Main controller power supply	AC 198-242V, 50±1Hz, 980VA
Heads	Triple-head
Max. injection pressure	330psi
Injection rate	0.1-10mL/s, step 0.1mL/s
Mixed-flow injection	Supports contrast media/saline mixing, ratio 5%-95%
Injection phases	Up to 12-phase programmable injection
Alpha Assistant	Fully automatic internal and external tubing connection, air purging and line priming to achieve injection-ready status. Integrated external tubing detection helps prevent improper operation and reduce risk.
Overpressure stop and speed reduction	User-selectable response: deceleration prior to stop, or immediate stop upon overpressure
Air alarm	Supported
No. of ultrasonic air sensors	5
Automatic left/right channel switching	Supported
Automatic internal tubing up/down	Supported
Main operation screen	15 inch
Device operation screen	7 inch
Splash-proof device screen	Side-mounted design to minimize interference from contrast or saline dripping
Injection program storage/recall	Stores up to 2000 programmable injection protocols
Residual volume display	Real-time display of remaining volume on main or device touchscreen
Automatic residual volume refresh	Automatic refresh after bottle replacement without manual operation
Injection/priming method	Direct bottle insertion without syringe, bottle opening, or manual filling; automatic air purging
Magnetic holder	Magnetic bottle holder with 90° rotating removal mechanism, no latch required
Aluminum alloy heating jacket	Optional heating jacket allowing convenient bottle installation and removal without opening protective cover
Data transmission	Wired or wireless (optional)
KVO	Supported
Injection delay	0-1000s
Interphase delay	0-1000s
Timer	Supports trigger timing at start and end of injection
Device touchscreen test injection	Supported
One-touch auto ready	Single-button automated preparation to injection-ready status
Bottle replacement sensing	Triple-head sensing detects bottle replacement operation
Information workstation	Not supported
