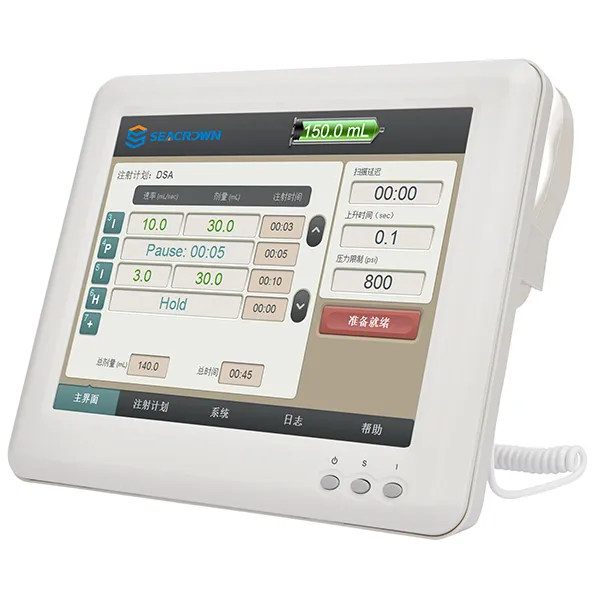

Angiographic Injector (Single Head), H15

Technical Specifications

• Model: Zenith-H15
• Application: Angiography
• Power supply: AC 220V, 50Hz, 800VA
• Syringe: 150mL disposable syringe
• Pressure limit: 300-1200psi(2070-8280kPa), step 1psi(1kPa)
• Injection rate: 0.1-50.0mL/s,step 0.1mL
• Injection volume: 0.1mL to maximum syringe capacity

Single head angiographic injector is an automatic high-pressure injection system featuring high thrust force and high injection speed, designed to meet the technical requirements of cardiovascular interventional systems such as large C-arm angiography systems. It provides precise control of injection rate and injection volume, configurable pressure limits with real-time pressure display, multiple control interface options and remote control capability. The system offers advanced technology, high performance and comprehensive functionality.

Angiographic injector is suitable for contrast media and drug administration during clinical vascular diagnosis and interventional procedures throughout the body:

• Large C-arm angiography systems for the diagnosis and treatment of cardiovascular diseases, including coronary angiography, ventricular angiography and aortic angiography
• Digital gastrointestinal systems and small to medium C-arm systems for peripheral vascular interventional procedures, as well as contrast-enhanced CT examinations
